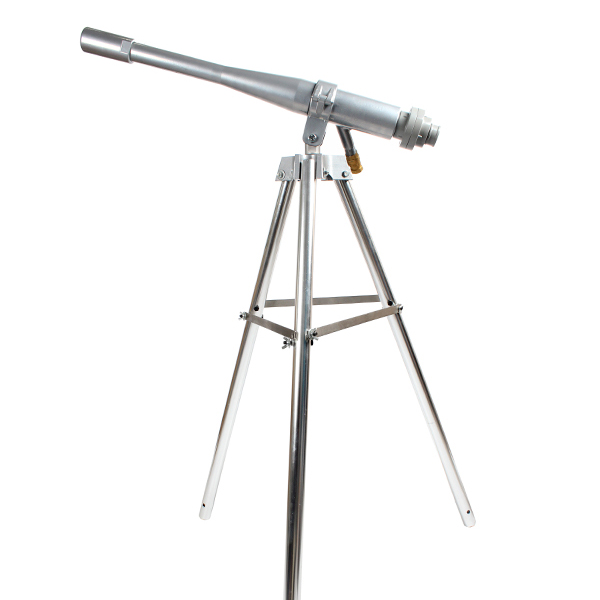

Hold Cleaning Guns Tripod With Platform Base
For cleaning of bulk carrier holds by a high pressure water stream. A strong stream of water can be projected a distance of over 20mtrs for the removal of any loose rust, flaking paint, or cargo residue.
Operates with a combination of high-pressure water and compressed air.The combined force generates a solid,tightly compressed jet of water capable of propelling between 35-40mtrs Primarily used for washing-down cargo residues in the holds of bulk carriers and general cargo vessels of all size.Equally effective for maintenance of difficult to reach steel or concrete super-structures,flaky paint or rust can be Hydrojet is fabricated in aluminium,the front section of the nozzle gun which is subjected to the maximum pressure,is specially machined from billet aluminium;a process more costly than ordinary casting.The hydrojet comes mounted on a tripod with base stand as seen below.water and air hoses are optional.
IMPA CODE | 590742 |
Base | With |
Recommended Air Supply Pressure | 7kg/cm2(100psi) |
recommended Water Pressure | 6kg/cm2(84psi) |
range(ataboverecommendedpressure) | 35-40meters |
approximateairconsumption | 1.6m3/min(57cfm) |
water Hose Size | 2”id |
air Hose Size | 3/4”id |
standard Water Hose Coupling | 2”storz |
air Hose Coupling | universal Claw Type |
IMPA CODE | 590743 |
Base | Without |
Recommended Air Supply Pressure | 7kg/cm2(100psi) |
recommended Water Pressure | 6kg/cm2(84psi) |
range(ataboverecommendedpressure) | 35-40meters |
approximateairconsumption | 1.6m3/min(57cfm) |
water Hose Size | 2”id |
air Hose Size | 3/4”id |
standard Water Hose Coupling | 2”storz |
air Hose Coupling | universal Claw Type |
DESCRIPTION | UNIT | |
HOLD CLEANING GUN VP WATER GUN, & TRIPOD | SET | |
HOLD CLEANING GUN TRELAWNY, HYDRAFLEX WITH TRIPOD | SET | |
HOLD CLEANING GUN TRELAWNY, HYDRAFLEX W/COMPLETE KIT/BASE | SET |
